Low-Temperature Ultrafine Grinding Hammer Mill For Inorganic Salt/ Crystal/API/Pigment
Product Description
Most Advanced: Professionally committed to providing smarter and more efficient pharmaceutical equipment and services.The highest speed is 6000 rpm, 50% higher than that of the same industry;The Screen has a larger effective area, which is about 30% higher than the traditional punching plate screen;HMI touch screen, easier for user to operate the machine;Smart design minimizes moving parts;Clamp type assembly design, convenient for disassemble and modular assembly;The head can be easily separated from fuselage for offline sterilization.
HML series hammer pulverizing equipment is widely used for pulverizing sterile APIs, sterile injection grade crystalline products and biological freeze-dried products such as oral solid preparations, intermediates and excipients, various antibiotics, etc.Simple modular design, good crushing effect and discharge rate make it more suitable for pharmaceutical, food and chemical fields.
Product Advantage
*Available D50:10~850μm.
* Sieve hole size 0.2mm-3mm.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Different installation combinations, applicable to different process requirements
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
* Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide
materials
* High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different
grinding requirements of different materials.
Working Process and Function

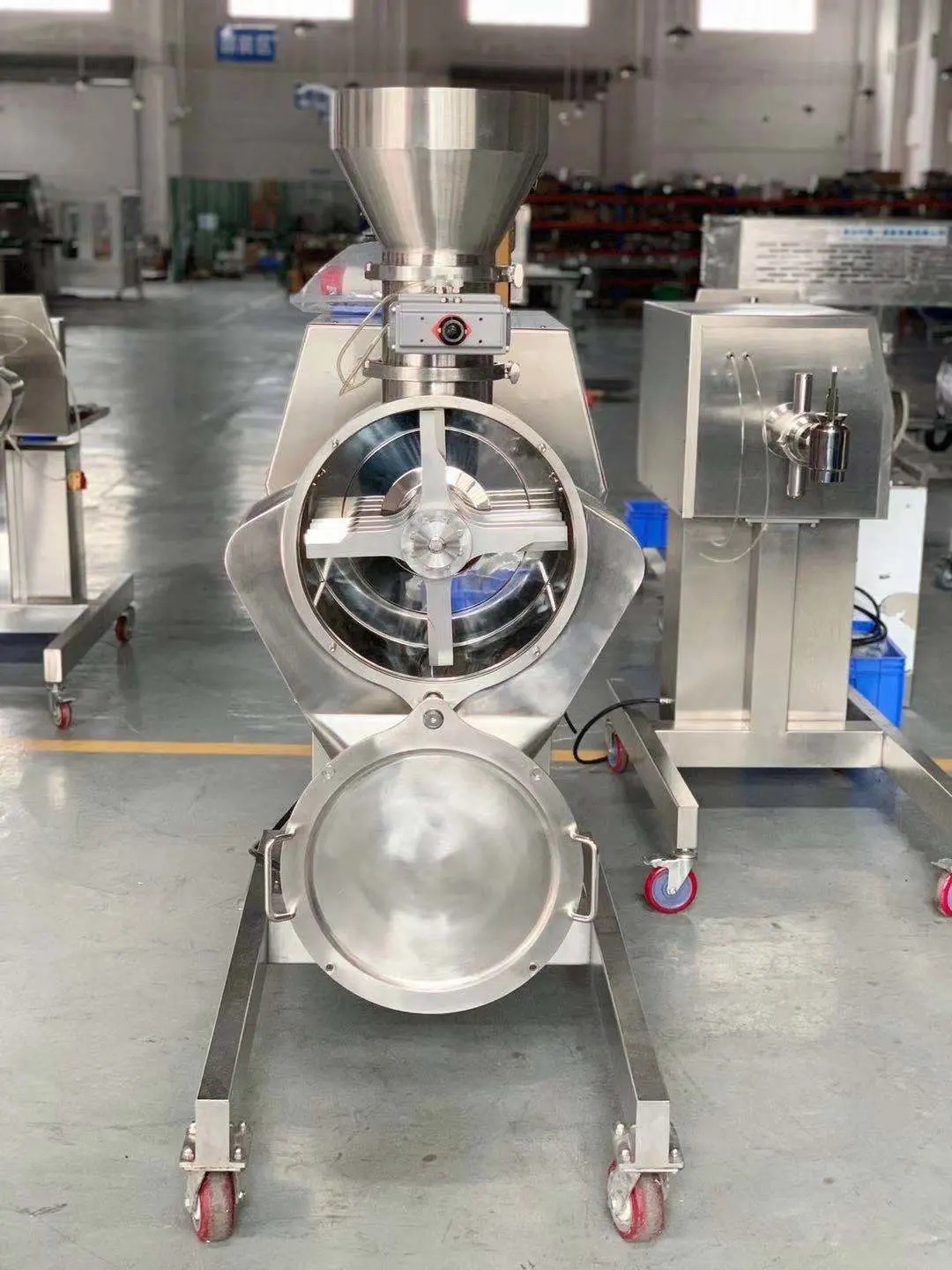

HML service machine head is composed of a screen, a rotary knife and a uniform feeding valve. The materials enters into the crushing chamber through the uniform feeding valve, passes through the high-speed impact of the rotor, and passes through the screen to become the required particle size.
Product Detail
Parameters
| MODE | CAPACITY | Voltage | Speed | Power | Weight |
| HML-200 | ≤250kg/H | 380V-50Hz | 1000~7000rpm | 4KW | ≈200kg |
| HML-300 | ≤1500 kg/H | 380V-50Hz | 1000~6000rpm | 4KW | ≈260kg |
| HML-400 | ≤2000 kg/H | 380V-50Hz | 1000~4500rpm | 7.5KW | ≈320kg |
