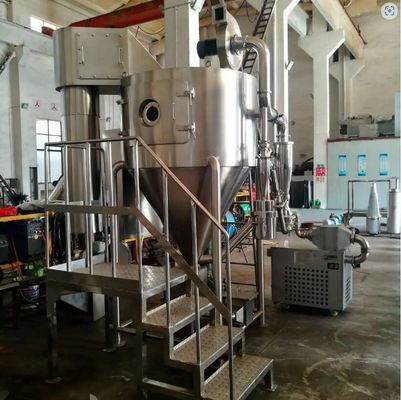

Fully Enclosed Traditional Chinese Medicine Extract Centrifugal Spray Dryer
Herbal Extract Spray Dryer
Product Description
Spray Dryer Pharmaceutical adopts a fully enclosed form, all parts are made of stainless steel, equipped with a three-stage purification device, and the filtered air reaches the level of 100,000. The cylinder and the top are equipped with cold wall devices to make the wall temperature less than 80°C, and the drying tower is equipped with an air brush sweeping tower device. The traditional Chinese medicine extract powder dried by this machine will not show the phenomenon of coking and deterioration, greatly increase the powder collection rate (more than 95%), and will not produce the phenomenon of mixing medicine and sticking to the wall.
Product Application
1.Liquid, paste, soupy, material, like: salty essence, broth essence, soy sauce powder, amino acid, vinegar powder.
2. Food additives, fish protein, egg powders, mushroom powder, maltodextrin, etc.
Flow Chart
Features
1.The tower is equipped with a cold air jacket and automatic vibration device；
2.The dryer can be equipped with automatic control & thermostatic feeding tank;
3.There are quick opening cleaning hole and sewage hole in the tower and piping system;
4.Manual supplied accessories for the high-pressure washing system is available;
5.All product contact parts are made with stainless steel(or whole parts with stainless steel);
6.Product collect way adopts two grade cyclones and water film duster;
7.The inlet air temperature can be controlled by a continuous automatic control device.
8.The dryer can be equipped with gas cleaning device.
Technical Specifications
| Item Model | ZLPG-15 | ZLPG-20 | ZLPG-25 | ZLPG-32 | ZLPG-38 | ZLPG-40 | ZLPG-47 | ZLPG-52 | ZLPG-58 | |||||||||
| Evaporated amount of moisture (kg/h) | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |||||||||
| Treated amount of raw material liguid (kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |||||||||
| Output of finished procuct (kg/h) | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |||||||||
| Solid content of damp raw material (%) | 18-25 | |||||||||||||||||
| Ratio of moisture of finished product (%) | 3-5 | |||||||||||||||||
| Electric power (kw) | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |||||||||
| Heating source | steam plus electricity | |||||||||||||||||
| Colleting way of product and its efficiency | two-grade cyclone duster of one-grade cyclone duster and one-grade damp duster ≥95% | |||||||||||||||||
| Automatic control meters and instruments | indicator of temperature of hot air and humidity of air exhaust | |||||||||||||||||
| Temperature of air in | 150-200 | |||||||||||||||||
| Temperature of air out | 80-100 | |||||||||||||||||
| Overal dimensions (mm) | L | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 | ||||||||
| W | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |||||||||
| H | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |||||||||
Note: ★The actual dimensions can be determined according to the actual situation of the customer, the above dimensions are for reference only.
★The above evaporation capacity is the upper limit of evaporation capacity.
Before Sales Services
1: Consult with us about your request of drying materials, include detailed information like dryting time, moisture content ect.
2: Machine could be cutomized from design, special requirments to production.The accessories in the vacuum drying system mentioned in the user's manual can be provided and installed for users. Please specify when ordering.
3: Quality check before shipping, all the accessories with long term provide.
4: Guarantee to provide safe package before shipping.
5: All the parts mentioned in User Manual would be provided along with the machine.
Pictures For Machine
After-Sales Service
Online and Offline Technical Advice to solve the problem. We guarantee high quality parts from the machine for long term support.
Quality Warranty
We guarantee to provide brand new machine with 12 months, during the guarantee period, free technical support.
