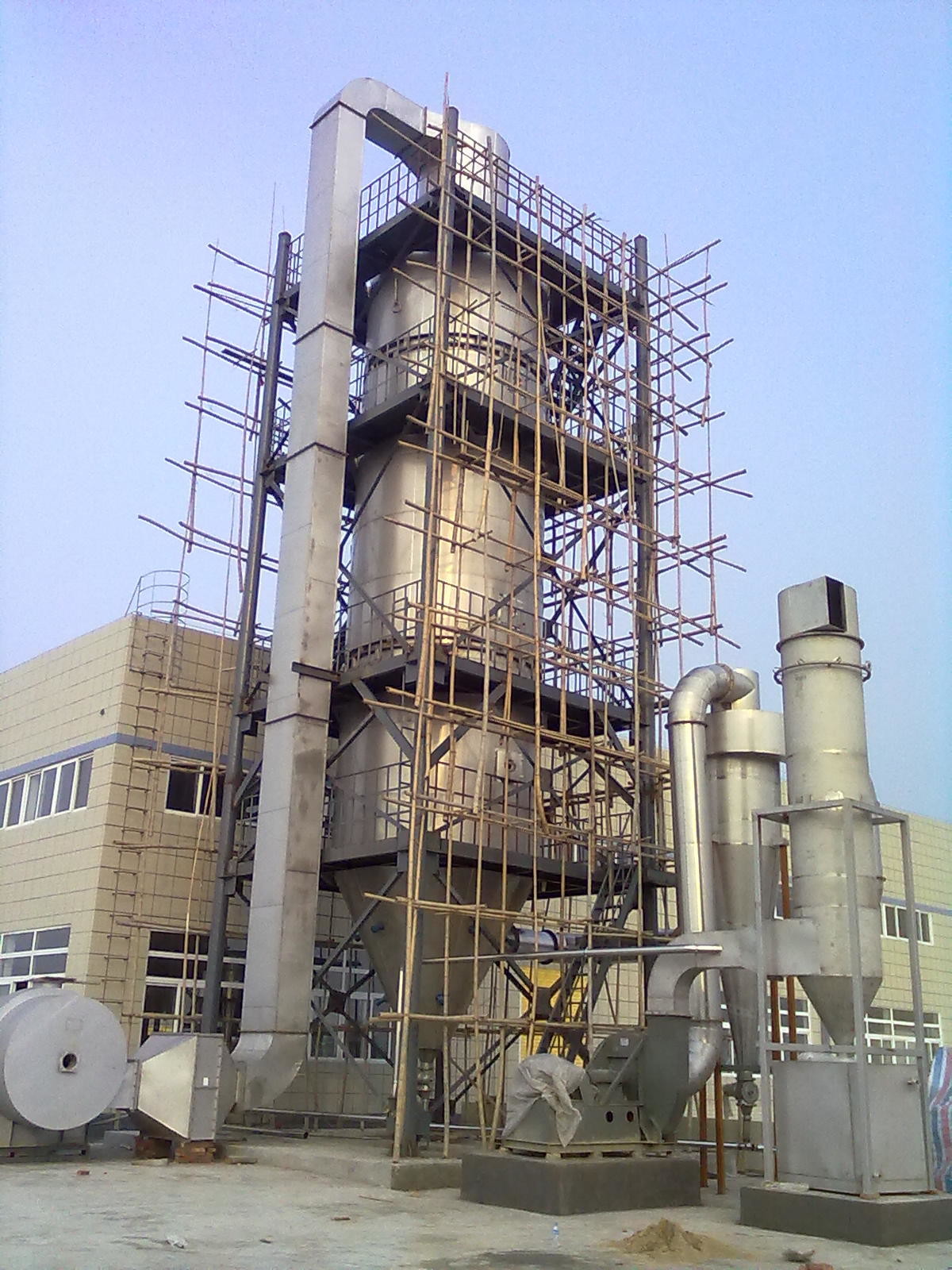

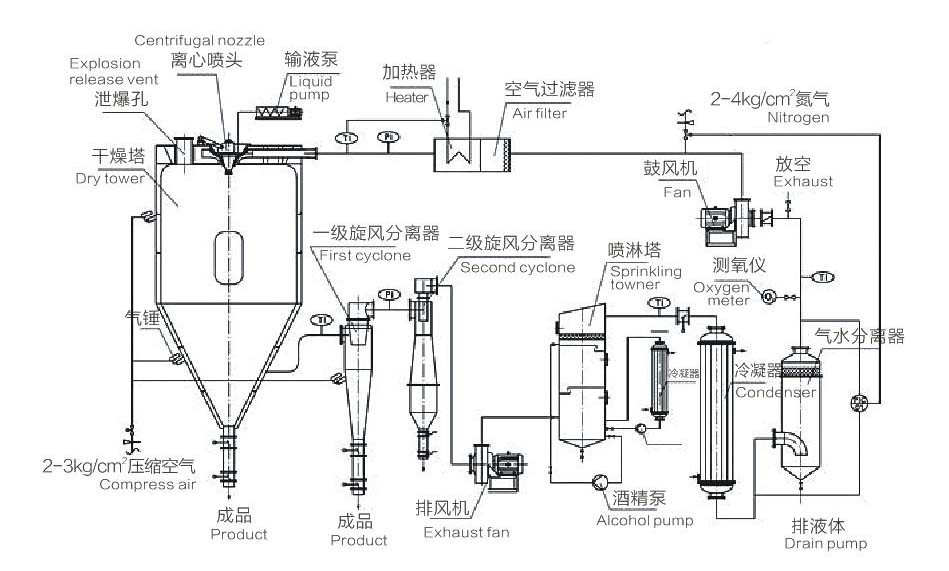

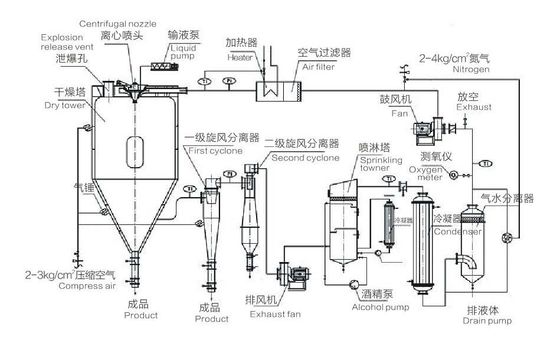

YPG Pressure Spray Dryer is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be gotten in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.The working of this set is as follows: the liquid of raw material is pumped in through diaphragm pump. The liquid of raw material be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery can be above 99%.
Technical Specifications
| model | unit | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Water evaporation | kg | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Dimensions(Ф×H) | mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×1880 | 4600×22500 |
| High pressure pump pressure | mPa | 2～10 | ||||||
| power | KW | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| Inlet air temperature | oC | 140～350 | ||||||
| Product moisture content | % | ＜5(Reachable0.5) | ||||||
| Material recovery | % | ＞97 | ||||||
| Electric heating | KW | 75 | 120 | 150 | When the temperature is lower than 200, according to actual technology | |||
| Electricity plus steam | Mpa+KW | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| Hot stove | Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
★The above evaporation capacity is the upper limit of evaporation capacity.
