Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO

1 SET

MOQ

$10,000.00(1 - 4 Sets) $9,000.00(5 - 9 Sets) $8,000.00(>=10 Sets)

Price

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Laboratory Spray Dryer

Temperature Control: Digital Display

Capacity: 100-1000ml/h

Power: Customized

Voltage: 220V

Material: SUS304, SUS316L,Customized

Size: Customized

Heating Source: Elecric,Stream+Elecric And Oil Fuel ,Gas Fuel ,Hot Air Furnace

High Light:

Customized Laboratory Spray Dryer

,

ISO Laboratory Spray Dryer

,

1000ml/h Lab Spray Dryer

Basic Infomation

Place of Origin: Changzhou，China

Brand Name: Melton

Certification: CE/ISO

Model Number: Customized

Payment & Shipping Terms

Packaging Details: By Shipping Packed in strong export wooden case

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5 Set/Sets per Month

Gallery

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO

Product Description

CUSTOMIZED SMALL FOOTPRINT STREAM ELECRIC AND OIL

FUEL HEATING SOURCE,CE/ISO

Products Description

This Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on. It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Product Paramenters

Model	OLT-SD8000B
Max capacity	1500-2000ml/h
Temperature range of Inlet air	30C -280C
Temperature range of outlet air	40C -120C
Precision of temperature	± 1 C
Dryer time	1.0-1.5 S
Speed of squirmy pump	30-2000ml/h
Consume of dryer air	0-330m3 /h, max pressure: 686Pa
Consume of spray air	0-4.2m3 /h, spray pressure: 2-5bar
Spray system	2 liquid nozzles with standard 1.0mm jet Options of 0.5/0.7/1.5/2.0/2.5mm
Spray direction	Downwards co-current
Power	3.5KW 108V-240V
Dimensions	6505001550 ( mm ) L * W* H

Main Features

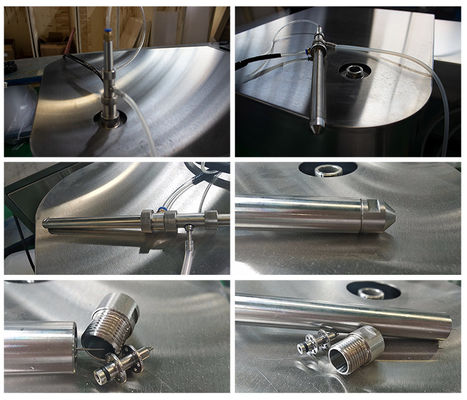

1. High-tech nozzle,high efficiency. 2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency. 3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted. 4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way. 5. Material won’t get polluted due to the special material of the atomizing.drying and collection system. 6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device. 7. PID constant temperature control,precise temperature control,precision is ±1℃. 8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml. 9. Uniform product powder,above 95% powder keep within same size range.

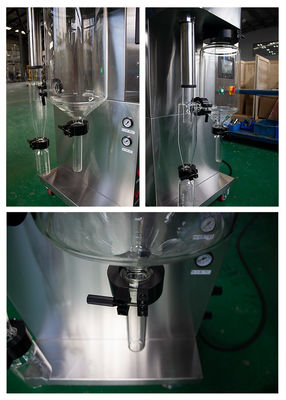

Detailed Images

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 0

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 1

Product Details

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 2

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 3

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 4

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 5

Company Profile

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 6

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 7

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 8

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 9

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 10

Contract Us

Stream Elecric Oil Fuel Heating Source Laboratory Spray Dryer Customized CE/ISO 11
