Home /Products/Laboratory Spray Dryer/Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H

1 SET
MOQ
$10,000.00(1 - 4 Sets) $9,000.00(5 - 9 Sets) $8,000.00(>=10 Sets)
Price
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220V
Product Name: Laboratory Spray Dryer
Temperature Control: Digital Display
Size: Customized
Material: SUS304, SUS316L,Customized
Heating Source: Elecric,Stream+Elecric And Oil Fuel ,Gas Fuel ,Hot Air Furnace
Capacity: 100-1000ml/h
Power: Customized
High Light:

SUS304 Digital Lab Spray Dryer

,

1000ml/H Lab Spray Dryer

,

PLC Laboratory Spray Dryer
Basic Infomation
Place of Origin: Changzhou，China
Brand Name: Melton
Certification: CE/ISO
Model Number: Customized
Payment & Shipping Terms
Packaging Details: By Shipping Packed in strong export wooden case
Payment Terms: L/C, T/T
Supply Ability: 5 Set/Sets per Month
Product Description

Digital Display Temperature Control Laboratory Spray Dryer Customized Capacity 100-1000ml/H






Products Description
This Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on. It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.




Product Paramenters

Model OLT-SD8000B
Max capacity 1500-2000ml/h
Temperature range of Inlet air 30C -280C
Temperature range of outlet air 40C -120C
Precision of temperature ± 1 C
Dryer time 1.0-1.5 S
Speed of squirmy pump 30-2000ml/h
Consume of dryer air 0-330m3 /h, max pressure: 686Pa
Consume of spray air 0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 1.0mm jet
Options of 0.5/0.7/1.5/2.0/2.5mm
Spray direction Downwards co-current
Power 3.5KW 108V-240V
Dimensions 650*500*1550 ( mm ) L * W* H





Main Features

1. High-tech nozzle,high efficiency. 2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency. 3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted. 4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way. 5. Material won’t get polluted due to the special material of the atomizing.drying and collection system. 6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device. 7. PID constant temperature control,precise temperature control,precision is ±1℃. 8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml. 9. Uniform product powder,above 95% powder keep within same size range.




Detailed Images

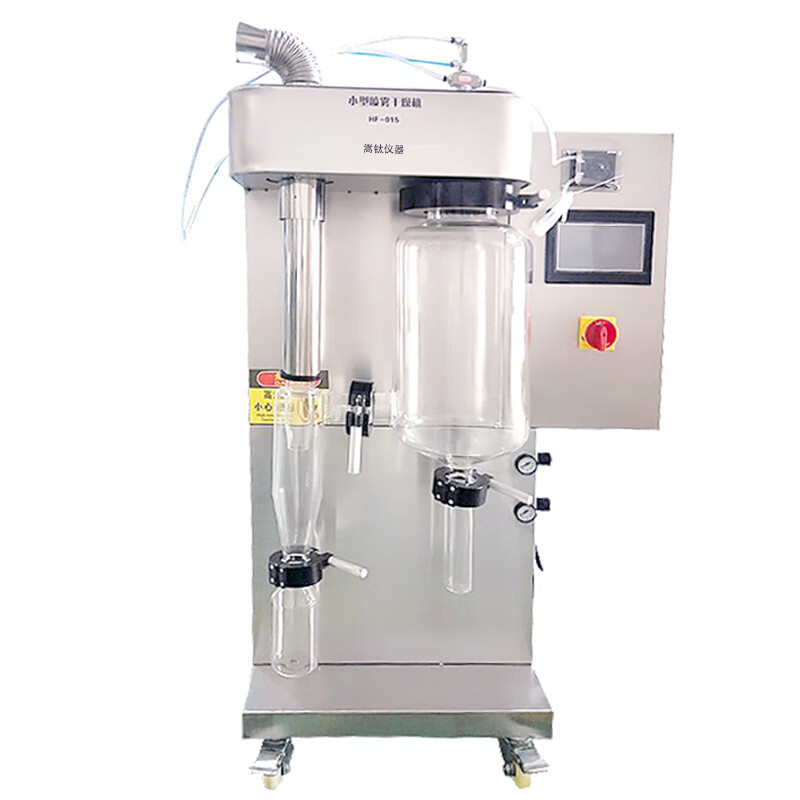

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 0

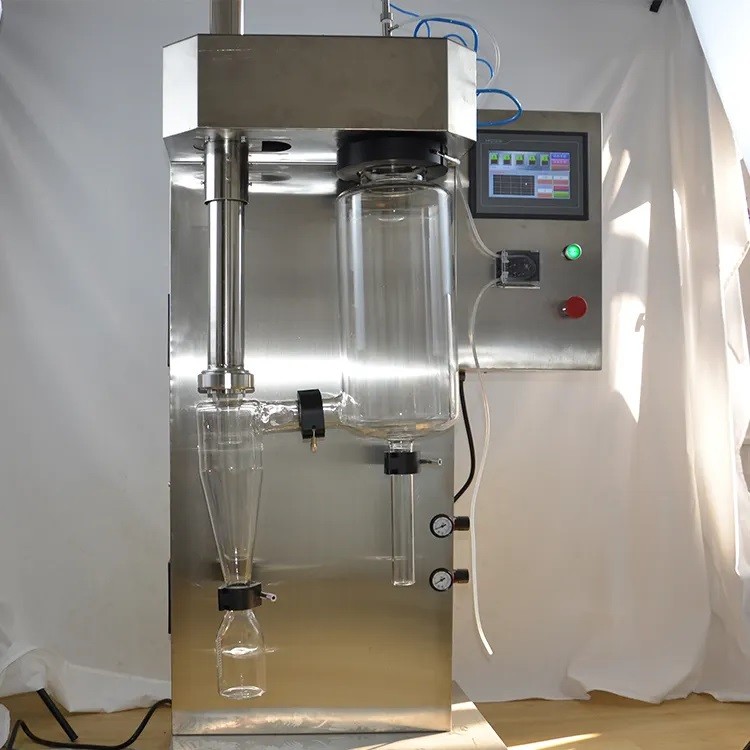

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 1





Product Details

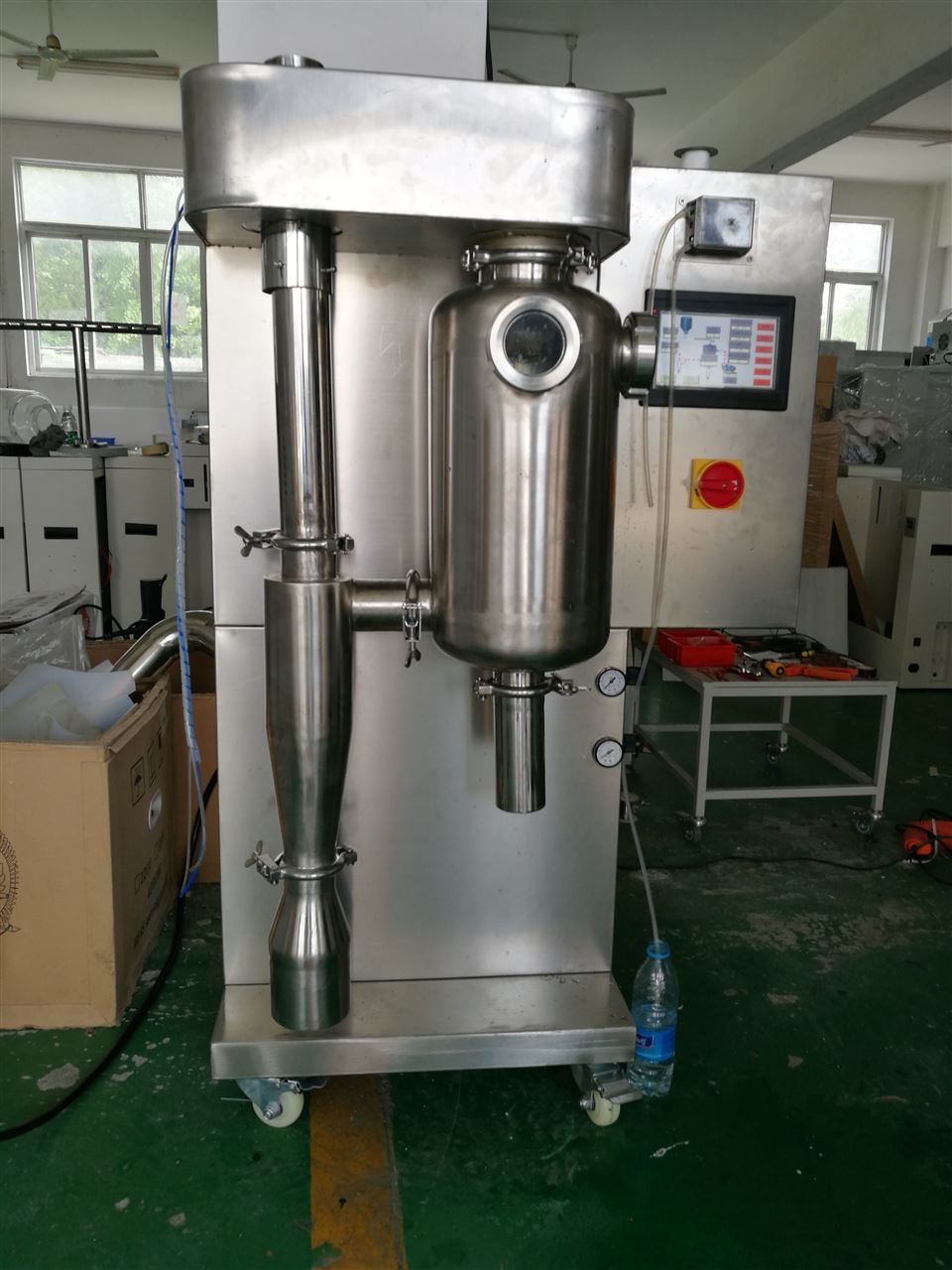

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 2

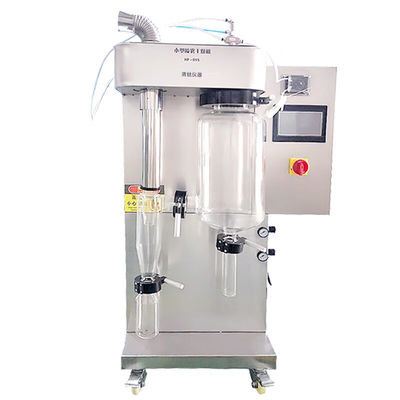

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 3

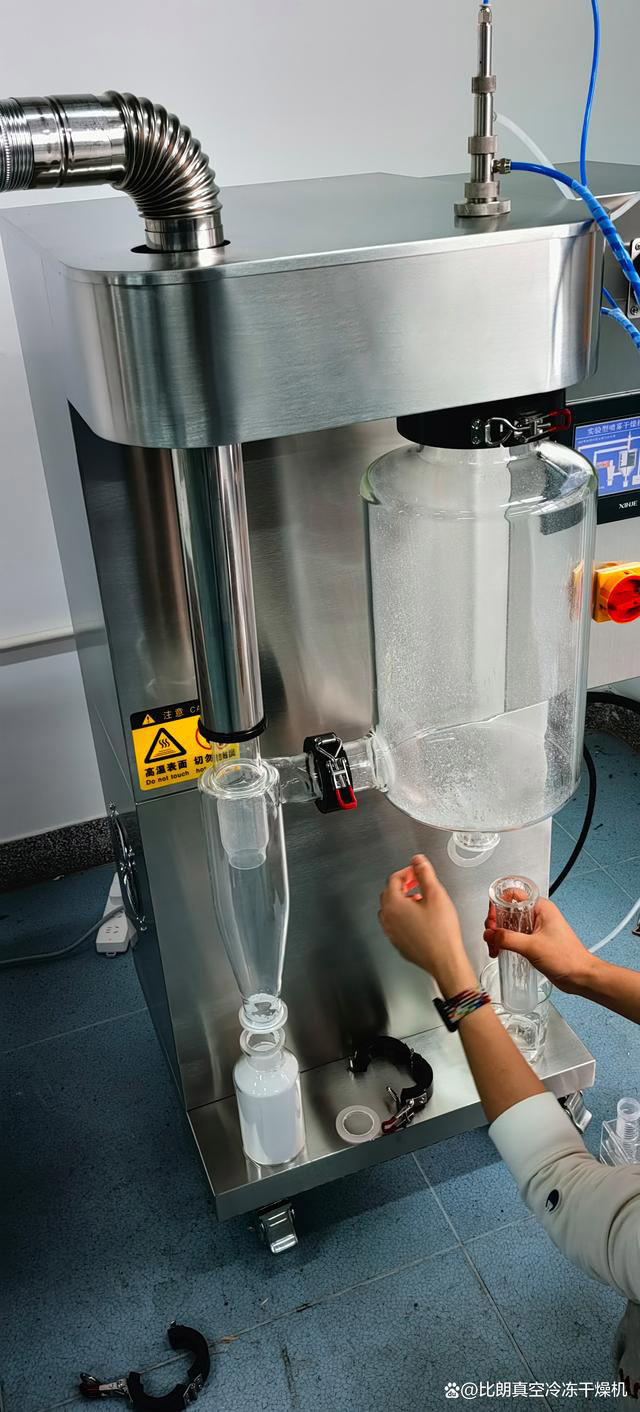

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 4

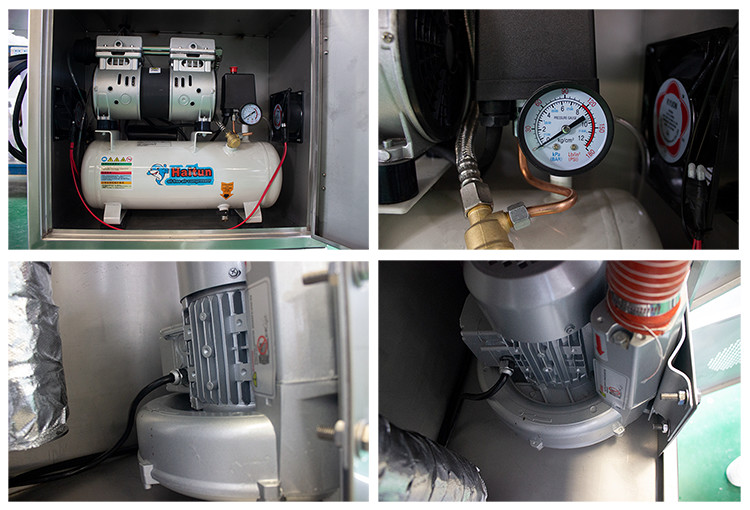

Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 5


Company Profile
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 6
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 7
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 8
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 9
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 10
Contract Us
Digital Display Temperature Control Lab Spray Dryer Customized Capacity 100-1000ml/H 11
