CH Series Fast Delivery Powder Blending Machine Inclined Discharge Trough Mixer With Paddle Mixing For Chicken Seasoning
Description
This machine is suitable for the mixing of dry powder or granular materials such as pharmacy, chemical industry and food. One end of this machine is equipped with a motor and a reducer. The power of the motor is transmitted to the reducer through a belt, and the reducer is transmitted to the V type through a coupling. barrel. Make the V-shaped barrel run continuously to drive the materials in the barrel to mix up, down, left and right in the barrel.
Product Advantage
● Good dispersion: the equipment completely solves the uniformity caused by the specific gravity of the materials. Problems such as low degree and dead angle. This machine adopts a mixed structure of five-axis with flying knife mortar, which can effectively disperse various short fibers.
● A wide range of use: the equipment can meet different, performance requirements of dry mixing and wet mixing. It is widely used in pharmaceutical industry, food industry and chemical industry.
● Small investment: The equipment has obvious price advantage. The investment is small and the effect is quick.
●The use is simple and convenient: the device has a small footprint, simple operation, low energy consumption,
● Long service life: the vulnerable parts of the equipment are all made of high-strength wear-resistant steel.It has a long service life.
Application
Capsule granules, Chinese medicine condiments, powdered or granular Chinese herbal medicines, iron powder, copper powder, magnesium powder and other chemical powders, fishing feed, poultry feed, wildlife feed, bird feed, condiments, additives,vitamins, various sugar products, etc., all kinds of powdered or granular ore.
Schematic
Technique parameter
| Model | CH-10 | CH-50 | CH-100 | CH-150 | CH-200 |
| Working volume(l) | 10 | 50 | 100 | 150 | 200 |
| Main arm speed(min) | 24 | 24 | 24 | 24 | 24 |
| Mixing cycle/ (min) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Main motor(kw) | 0.25 | 1.1 | 2.2 | 3 | 4 |
| Dumping motor(kw) | By hand | 0.75 | 0.75 | 0.75 | 0.75 |
| Net weight(kg) | 40 | 280 | 350 | 410 | 520 |
| Overall size(mm) | 600 x 280 x 450 | 980 x 420 x 800 | 1100 x 440 x 900 | 1280 x 600 x 1100 | 1400 x 600 x 1200 |
| Model | CH-300 | CH-400 | CH-500 | CH-600 | CH-1000 |
| Trough capacity(kg) | 300 | 400 | 500 | 600 | 1000 |
| Main arm speed(min) | 24 | 24 | 24 | 24 | 24 |
| Mixing cycle/ (min) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Main motor(kw) | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
| Dumping motor(kw) | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 |
| Net weight(kg) | 520 | 580 | 680 | 750 | 1200 |
| Overall size(mm) | 1850×700×1200 | 2100×750×1250 | 110×440×900 | 1280×600×1100 | 2280×1100×1500 |

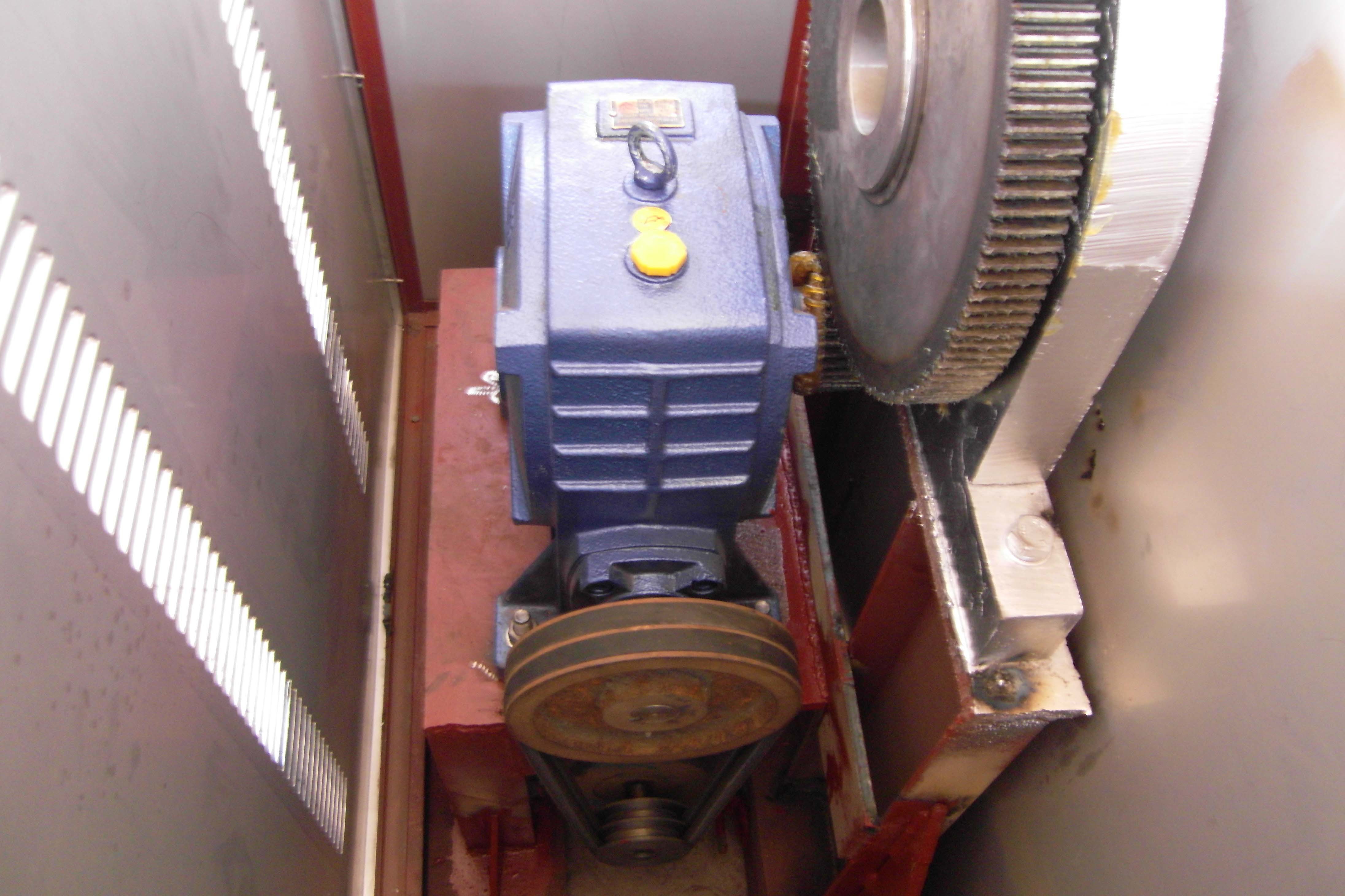

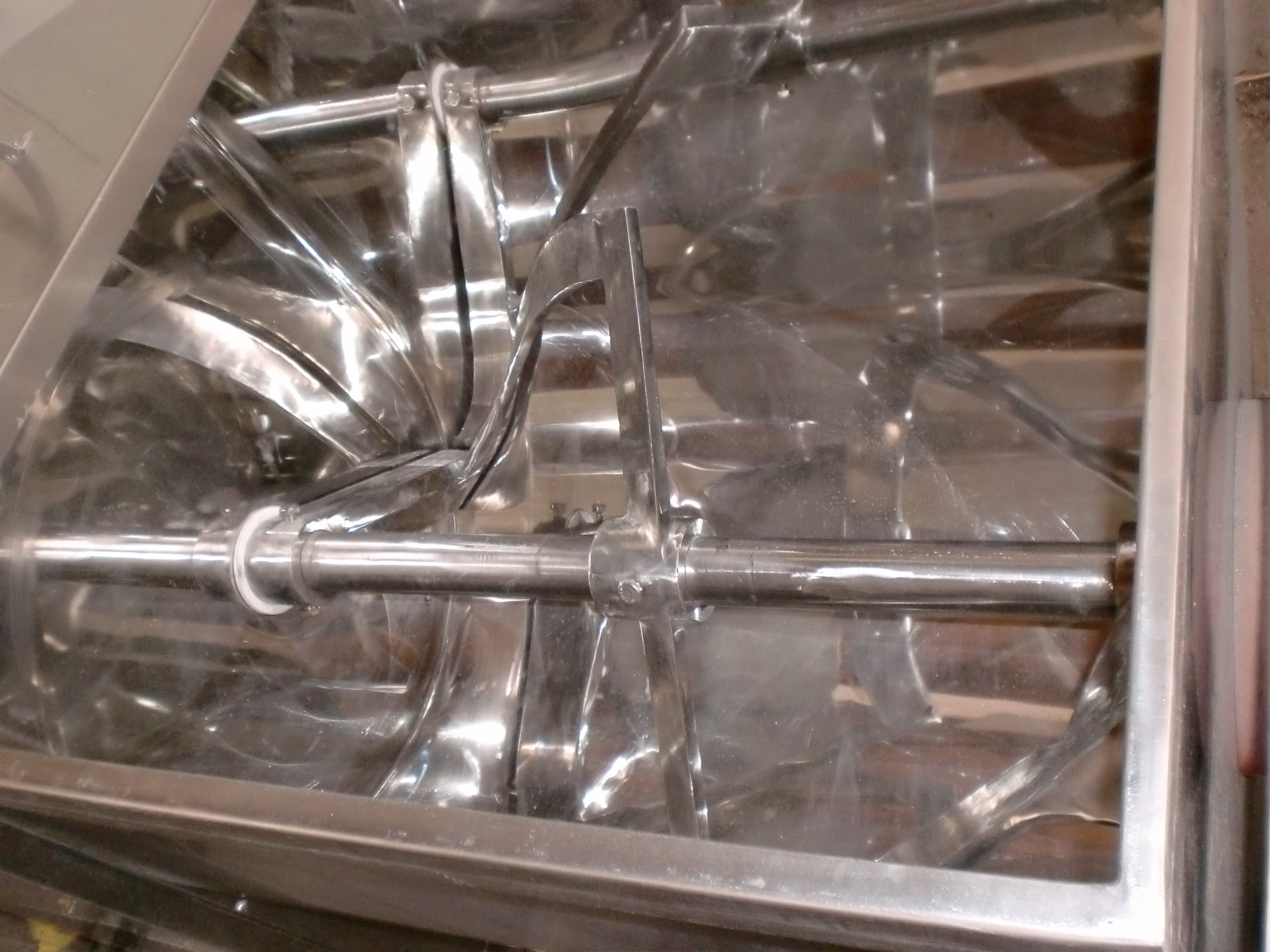

Details

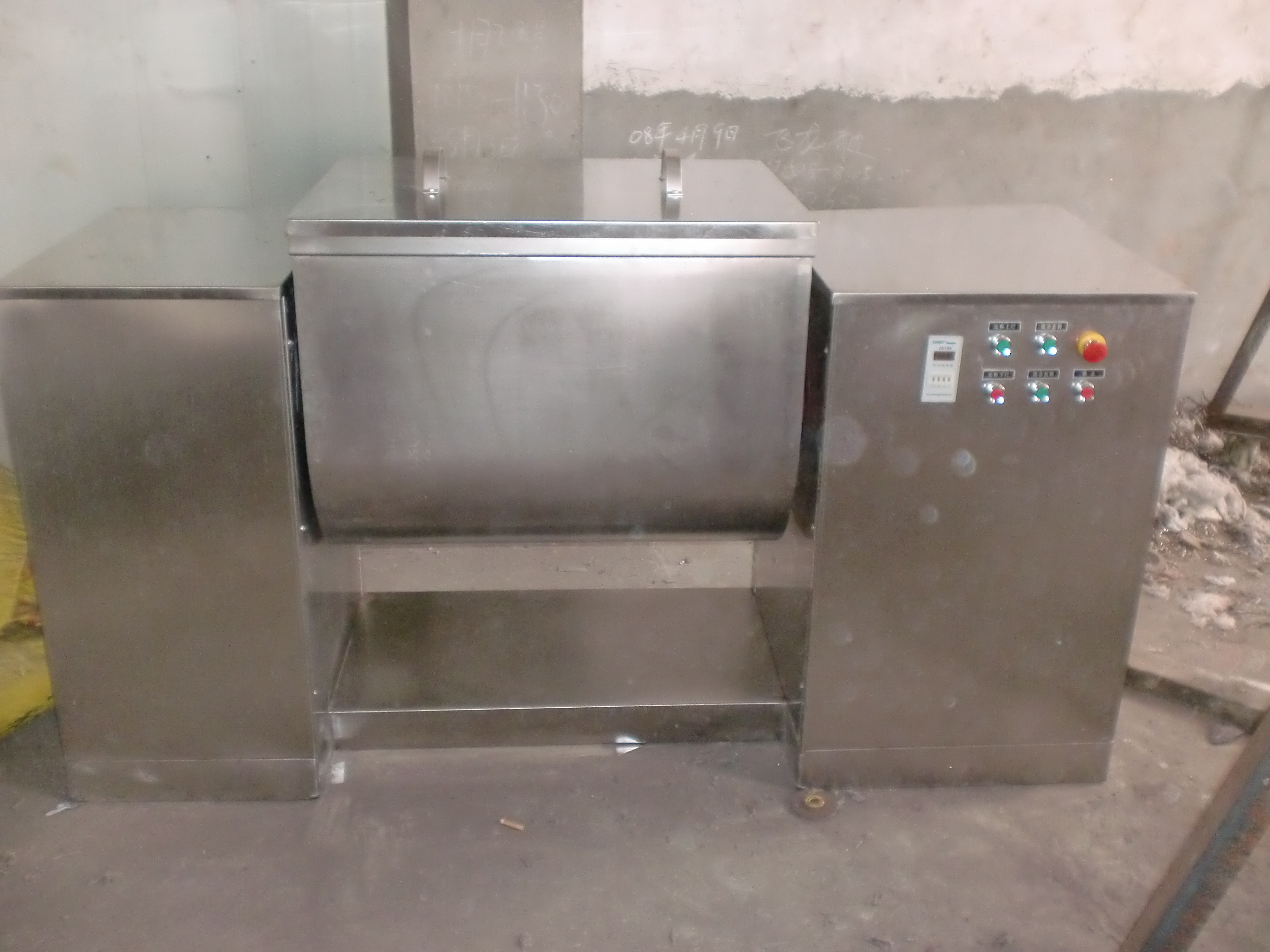

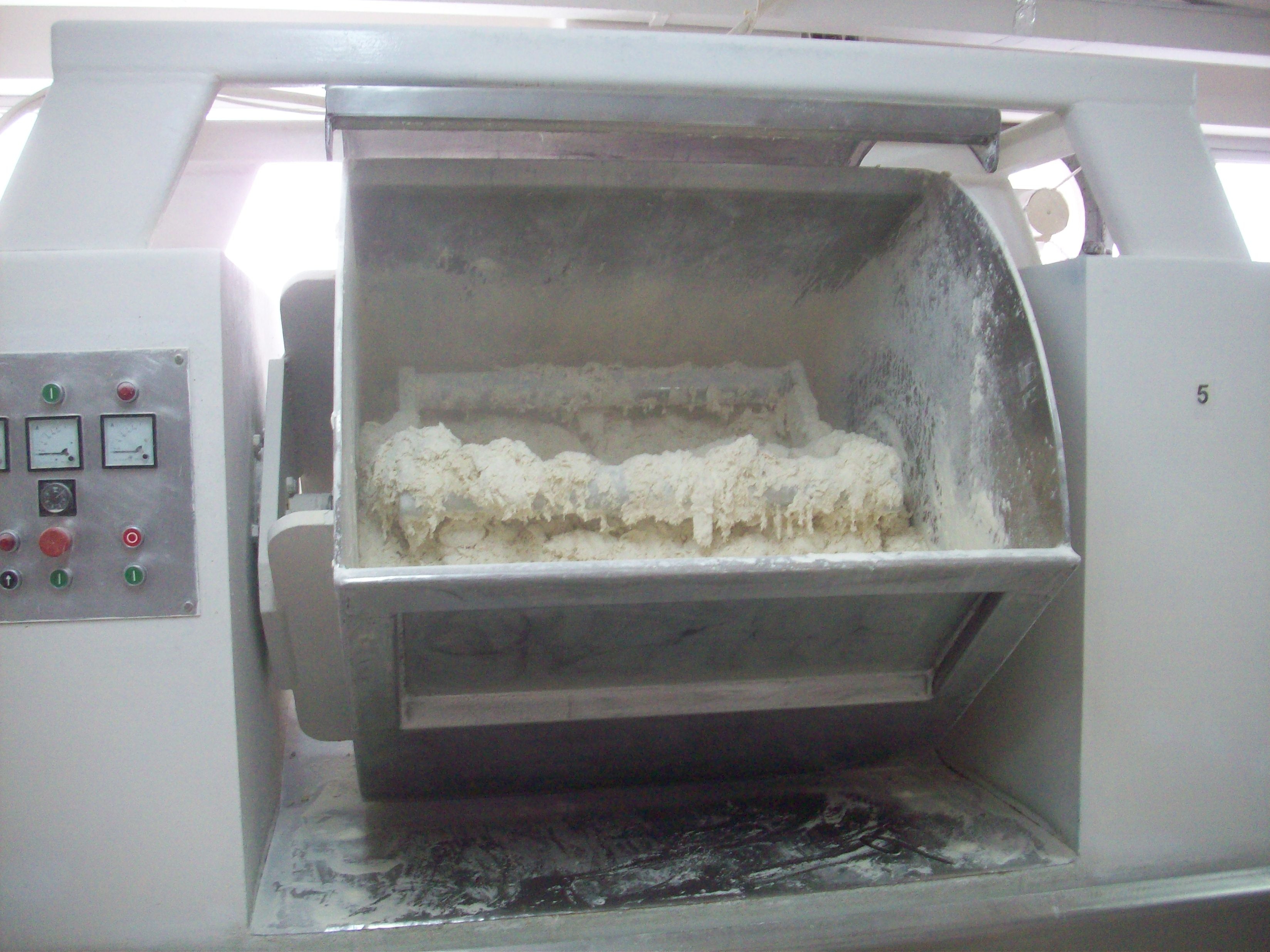

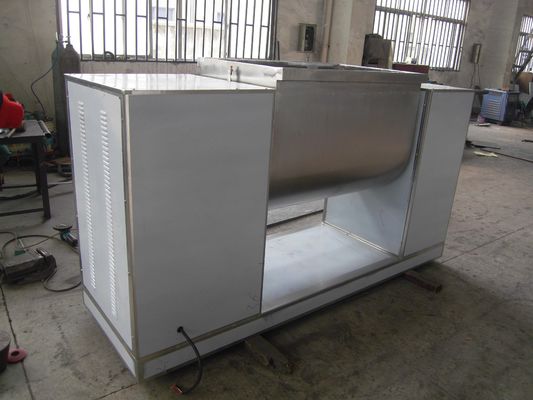

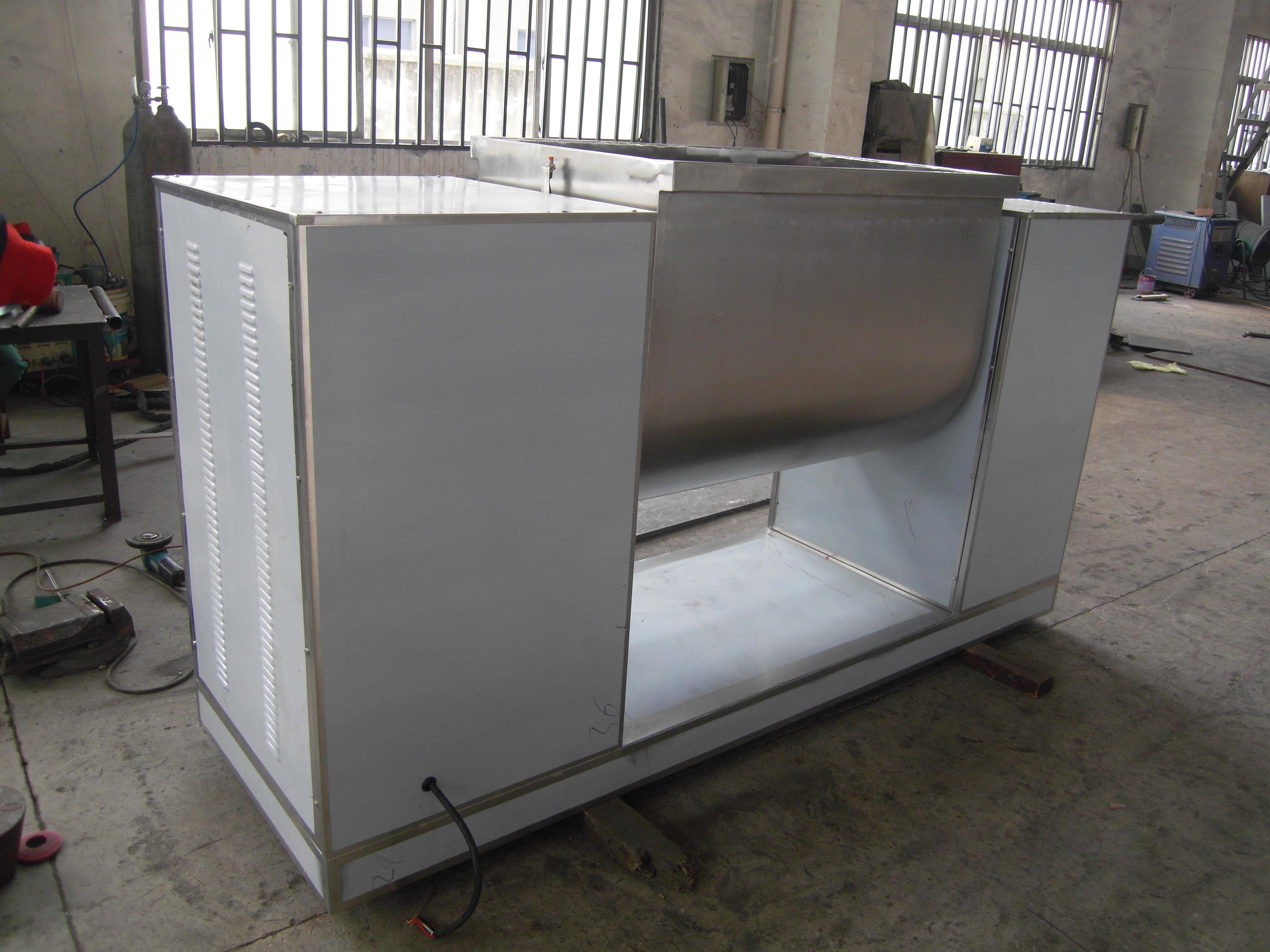

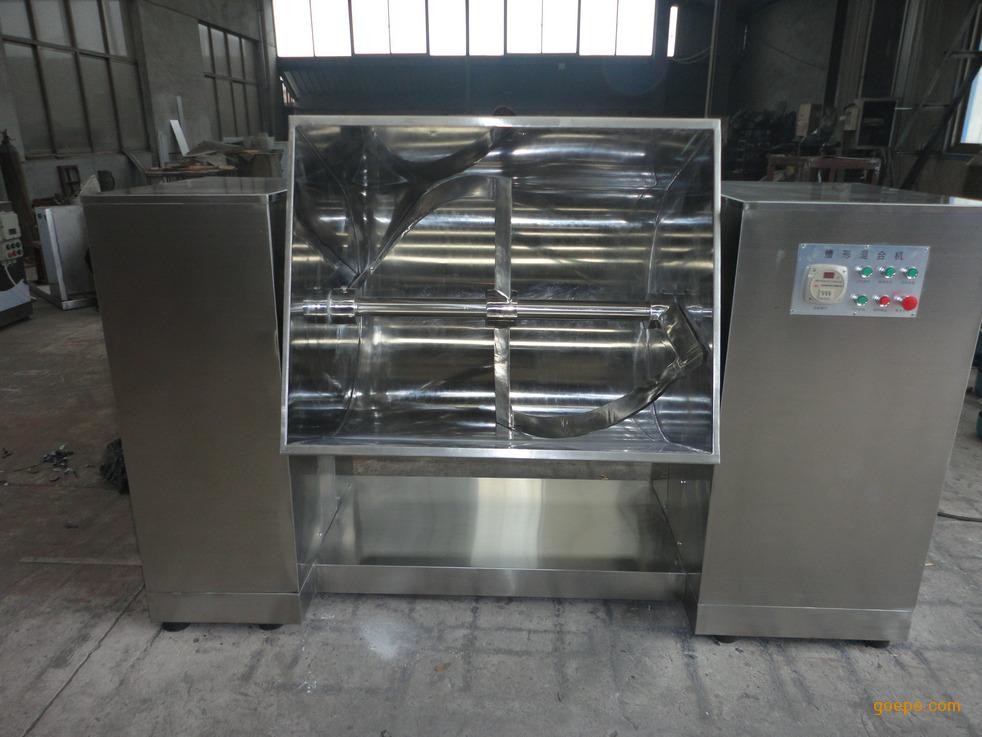

Product Show
