Name: Industrial Fluidized Bed Granulator Machine For Pharmaceuticals
Brand: Melton
SKU: FL/FBG/Customized
Price: 2 USD
Availability: InStock
Rating: 4.6 (135 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Power Of Fan: 3-45 (Kw)

Capacity: Min：1.5-250kg，Max：4.5-750kg

Steam Pressure: 0.3-0.6Mpa

Temperature: Room Temperature-120℃ （adjustable）

Defects Liability Period: 12 Month After Installation Or 18 Months Since BL Date

Applicable Industries: Pharmaceutical ,Food, Chemical Industry, Dairy

Field: ≥99%

Noise: ≤ 75 Db

Name: Fluidized Bed Granulator

High Light:

Fluidized Bed Granulator Machine

Fluidized Bed Granulator

Granulator Machine For Pharmaceuticals

Basic Infomation

Place of Origin: Changzhou，China

Brand Name: Melton

Certification: ISO/CE/GMP

Model Number: FL/FBG/Customized

Payment & Shipping Terms

Packaging Details: Plywood case or according to customer's model

Delivery Time: 6-9 work days

Payment Terms: L/C, T/T

Supply Ability: 10sets/month

Gallery

Industrial Fluidized Bed Granulator Machine For Pharmaceuticals

Product Description

Phamaceutical Industry,Foodstuff, Other Industries Used FL high quality Fluid Bed Granulator

Product Overview

The machine is mainly used for the operations of mixing, granulating,drying and coating of granule,powder material in pharmaceutical industry , foodstuff industry,chemical industry etc. Such as granule of tablet, granule for quick resolving drinking, condiment.

Principle

Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test. Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.

Main Features

Through powder granulation, improve fluidity, reduce dust flying.

The solubility was improved by powder granulation.

Mixing- granulation -drying is completed in one machine.

Use anti static filter cloth to ensure the safety of the equipment.

Set up the pressure discharge hole, in case of explosion, personnel will not be injured.

There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which conforms to the GMP specification.

High degree of automation, equipped with program control, simulation screen display technology for users to choose.

Applications

Drug granulation and coating. Granulation: tablet granule, granule for granule, capsule granule. Coating: pellet, pill protective layer, color slow release, film, enteric coating. Food granulation and coating. Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.

Parameter

			Item

			Model

			5

			30

			60

			120

			300

			500

			800-1000

			Container

			Volume (L)

			22

			100

			220

			420

			1000

			1500

By client

			Diameter(mm)

			400

			700

			1000

			1200

			1600

			1800

			Capability

			min.(kg)

			4

			15

			30

			80

			150

			250

			max.(kg)

			6

			45

			90

			160

			450

			750

			Fan

			Capacity(m³/h)

			1200

			1800

			3000

			4500

			7000

			8000

			Pressure(mmH2O)

			375

			480

			950

			950

			950

			950

			Power(kw)

			4

			7.5

			11

			18.5

			30

			45

			Steam expenditure(kg/h)

			23

			70

			141

			211

			366

			451

			Compressed air expenditure(m³/min)

			0.9

			0.9

			1.0

			1.0

			1.5

			1.5

			Weight of the main body(kg)

			700

			1000

			1100

			1300

			1800

			2000

			Steam pressure(mpa)

			0.3-6

			Temperature(°C)

			(adjustable at the range from room temperature to 120°C )

			Working time(min)

			45~90
( decided in accordance with the proplerties of raw materials )

			Field(%)

			≥99

			Noise(dB(A))

			≤75dB(A)
(When installation.main machine is separated from fan)

			Size(LxWxH)m

			1.2*0.7*2

			1.6*
1.1*2.5

			1.9*
1.4*3

			2.2*
1.7*3.3

			2.8*
2*4

			3*2.3
*4.4

Simplified Diagram

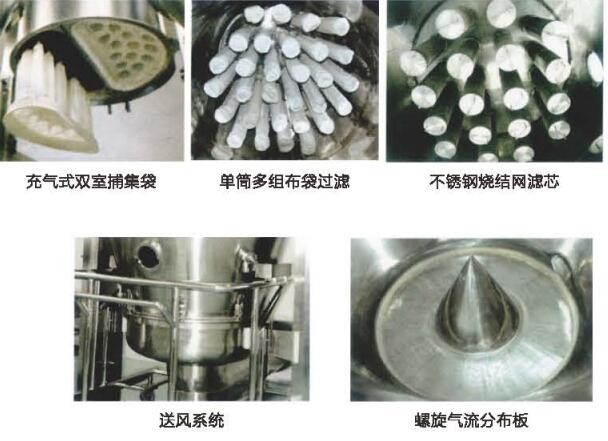

Product Details

Suggestion

Our Service

Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer`s requirements.

After-sale service
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.

Package & Shipping

Tag:

Industrial Fluidized Bed Granulator Machine For Pharmaceuticals

Fluidized Bed Granulator Machine

Fluidized Bed Granulator

Granulator Machine For Pharmaceuticals

Principle

Main Features

Product Details

Our Service

Wet Granulation Machine

Oscillating Granulator Machine

Powder Granulator Machine

GMP Dry Granulation Machine Pharmaceutical Swing Pellet Machine 65r/min

4Rpm-25Rpm Roll Compactor Machine Pharma , Fertilizer Granulator Machine

100kg/H-1000kg/h Dry Granulation Machine Yk Type Oscillating Granulator Machine

Organic Fertilizer Granulation Machine Pharmaceutical Manufacturer

0-300rpm Dry Granulation Machine 220V Bentonite Granules Making Machine

QZL Series Spherical Shot Blasting Machine , Wet Granulation Machine For Medicine

High Capacity Dry Granulation Machine 100kg/Batch Roller Compactor Pharmaceutical

High Shear Mixer Granulator Wet Granulation Rapid Mixing Granulator

Item		Model
Item		5	30	60	120	300	500	800-1000
Container	Volume (L)	22	100	220	420	1000	1500	By client
Container	Diameter(mm)	400	700	1000	1200	1600	1800
Capability	min.(kg)	4	15	30	80	150	250
Capability	max.(kg)	6	45	90	160	450	750
Fan	Capacity(m³/h)	1200	1800	3000	4500	7000	8000
	Pressure(mmH2O)	375	480	950	950	950	950
	Power(kw)	4	7.5	11	18.5	30	45
Steam expenditure(kg/h)		23	70	141	211	366	451
Compressed air expenditure(m³/min)		0.9	0.9	1.0	1.0	1.5	1.5
Weight of the main body(kg)		700	1000	1100	1300	1800	2000
Steam pressure(mpa)		0.3-6
Temperature(°C)		(adjustable at the range from room temperature to 120°C )
Working time(min)		45~90 ( decided in accordance with the proplerties of raw materials )
Field(%)		≥99
Noise(dB(A))		≤75dB(A) (When installation.main machine is separated from fan)
Size(LxWxH)m		1.20.72	1.6* 1.1*2.5	1.9* 1.4*3	2.2* 1.7*3.3	2.8* 2*4	32.3 4.4
