Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L

1 Set (Min. Order)
MOQ
US $9,990-200,000 / Set | 1 Set (Min. Order)
Price
Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L
Features Gallery Product Description Request A Quote
Features
Specifications
Heating Source: Steam, Thermal Oil, Gas, Oil
Application: Vegetable, Herbal, Fruit , Chemical
Voltage Of Power: 220V/ 380V/ 400V/ 415V/ 440V
Belt Type: Punching Plate Or Mesh Screen
Material: Other, SUS304, SUS304L, SUS316, SUS316L, Ti
Material Shape: Strip, Granules, Special Shapes
Drying Time: Adjustable
Drying Speed: Regulated By Inverter
High Light:

Single Layer Conveyor Mesh Belt Dryer

,

Conveyor Mesh Belt Dryer Machine

,

SUS316 Conveyor Belt Dryer

Basic Infomation
Place of Origin: Changzhou,China
Brand Name: Melton
Certification: ISO/CE/GMP
Model Number: DW/ Customized
Payment & Shipping Terms
Packaging Details: Standard export container,or in bulks, bare main machines, motors and small parts are packed in wooden cases
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 10 set
Product Description

Single Layer Conveyor Mesh Belt Dryer Complete In Specifications Belt Drying Machine
Product Description


The raw material can be spread on the converyer belt through suitable auxiliary mechanism such as distributor, vibrating belt, pulverizer of granulator. The convey or passes one cannel or serveral channels consisting of heating unit. Each heating unit is equipped with air heating and circle system. Each channel has one or sereral damp exhaust system. When the conveyor passes it, hot air passes through raw material from up to low or against. In this way it makes raw material dry uniformly.

Work principle


The materials are uniformly put on the mesh-belt by the material charger. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device. The drier is composed of serveral units. For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination blower. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the bottom or against and this will complete the heat and mass tranfer process. This process will bring the material water away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material temperature. The final products after the drying will fall into the material collector continuously. The top and low circulation units can be freely equiped according to the users demand. The unit number can be selected according to the demand.

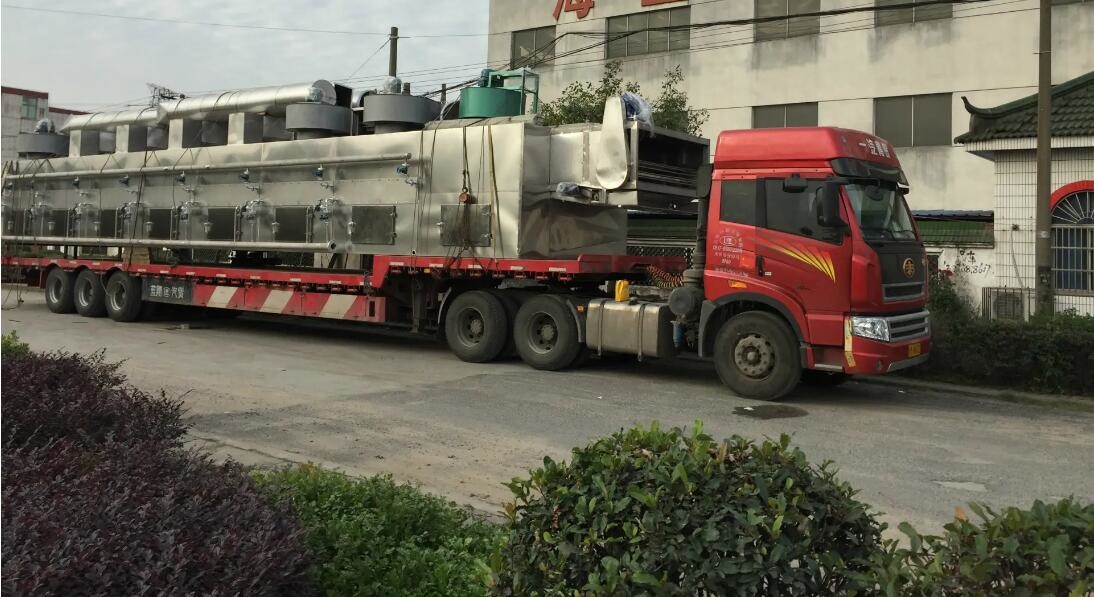

Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 0
Performance characteristics


◎ The mesh belt has good air permeability, and the residence time can be adjusted.

◎ No advantage of strenuous exercise, not easy to break.

◎ Drying area, drying intensity, adopts double circulation structure, hot air is uniform, and there is no problem of uneven gas distribution in drying phenomenon. It is divided into several units, and each unit can control the circulation loop independently.

◎ The structure of the belt dryer is not complicated, the installation is convenient, and it can run for a long time. When a fault occurs, it can enter the inside of the box for maintenance.

◎ The equipment configuration is flexible, and the mesh belt washing system and material cooling system can be used.

◎ Most of the air is recycled, highly energy saving.

Technical specifications


modelDW-1.2-8DW-1.2-10DW-1.6-8DW-1.6-10DW-2-8DW-2-10DW-2-20
Number of units45454510
bandwidth(m)1.21.62
Dry section length(m)81081081020
Paving thickness(mm)10-80
Operating temperature(℃)50-140
steam pressure(Mpa)0.2-0.8
Steam consumption (kg/h)120-300150-375150-400180-500180-500225-600450-1200
Drying time(h)0.2-1.21.25-1.50.2-1.20.25-1.50.2-1.20.25-1.50.5-3
Dry strength kg water/h60-16080-20085-220100-260100-260120-300240-600
Total power of equipment (kw)11.413.614.618.719.724.551
 long(m)9.5611.569.5611.569.5611.5621.56
Dimensionswidth(m)1.491.491.91.92.322.322.32
 high(m)2.32.32.42.42.52.52.5
Gross weight kg45005600530064006200750014000


Application


The machine widely used in food,agriculture products,dehydrated vegetables,chinese herbal medicine,feed and chemical industry etc.

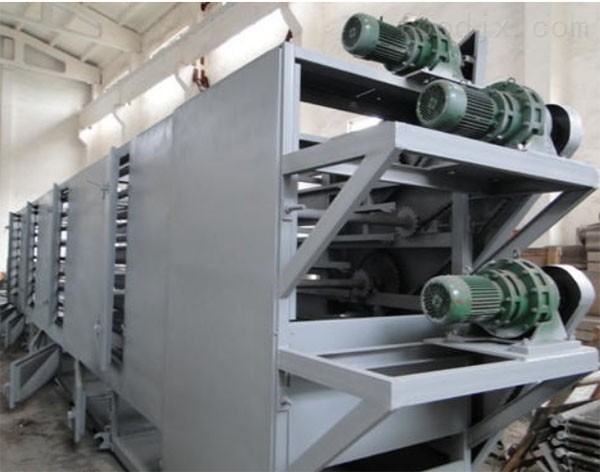

Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 1

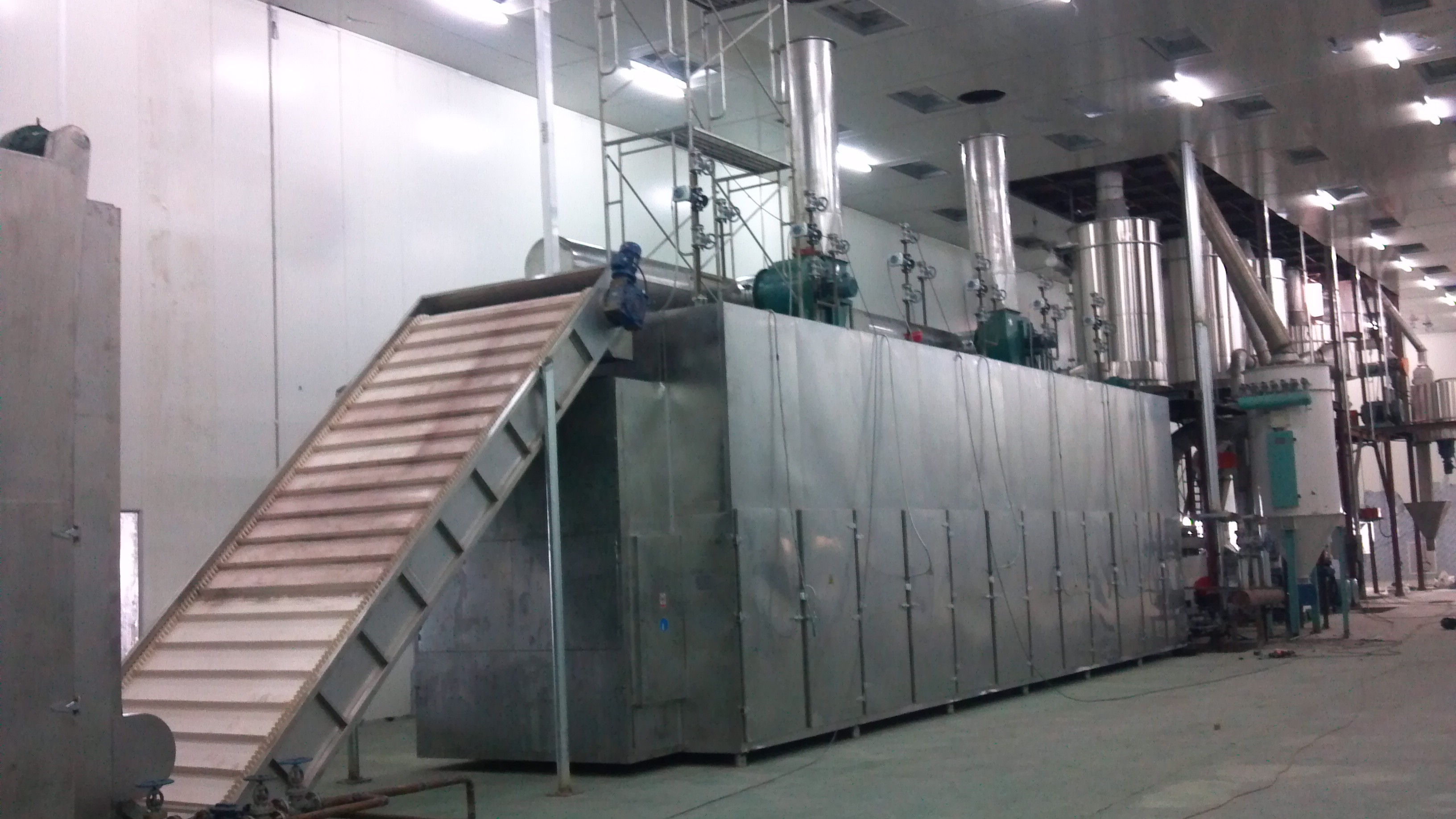

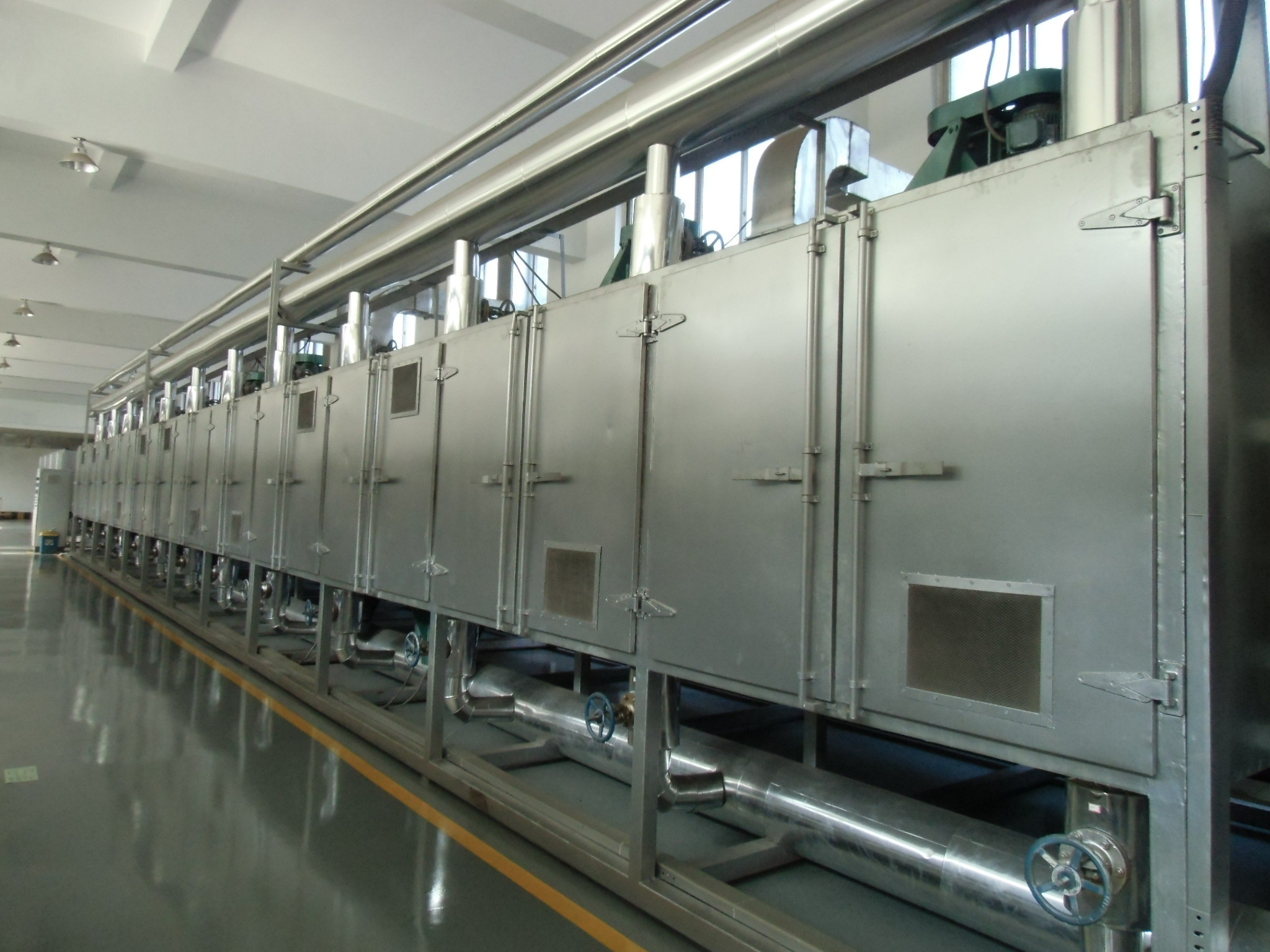

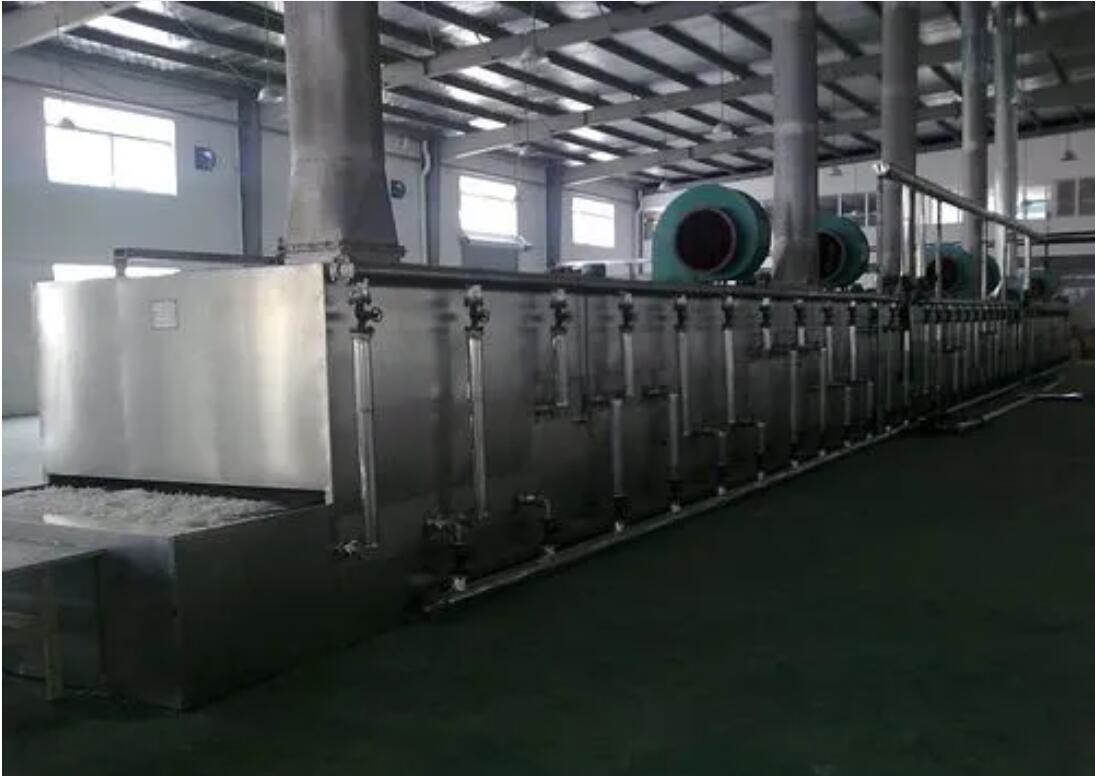

Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 2Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 3Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 4

Details


Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 5

Packaging & Shipping


Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 6

After Sales Service


Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 7

Contract Us


Single Layer Conveyor Mesh Belt Dryer Machine SUS316 SUS316L 8
