Stainless Steel Electric Heating Drying Machine Fruit Vegetable Hot Air Dry Oven Dryer
Product Description
Hot air drying oven adopts the forced circulation of hot air inside the chamber of the oven. In the drying chamber, hot air rises above and the hot air reaches the top of the chamber. Then, hot air is circulated back to the bottom by a fan installed inside the chamber and hence the optimum amount of heat is achieved gradually inside the oven. The drying is the process that the materials heated in the trays with hot air circle, the wet moisture takes out from material will be exhausted outside at the same time.
CT-C series hot air circulating Drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%.
Hot Air Drying Oven Advantages
1. Hot air is circulated in the oven to save the energy, so the heat efficiency is high.
2. It adopts the forced ventilation and adjustable air distributor, thereby materials in the oven can be dried uniformly.
3. The most common heating sources are offered: steam, electricity, or far infrared, or both steam electricity. Generally, electricity is the most economical and convenient way.
4. Hot air fruit drying oven is made of stainless steel, equipped with an axial flow fan, automatic thermostatic control system and a computer control system.
5. Low noise, smooth operation, automatic temperature control, easy installation, and maintenance.
6. Wide application. This hot air fruit drying machine can be used to dry variety of fruits like blueberries, banana, lime, etc. and it is also applied in the pharmaceutical industry, chemical industry, food industry and etc..
7. Various hot air drying ovens can be customized according to customers' needs.
8. Drying temperature of food drying oven: steam heating 50-130˚C, Max.140˚C.
9. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client).
10. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.
11. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and it can be exchanged each other.
12. Baking tray also drill hole if client have detail requirement.
13. Machine materials : AISISUS304 , AISISUS316L, and other material .
14. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.
Application
The hot air circulating drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component and etc.

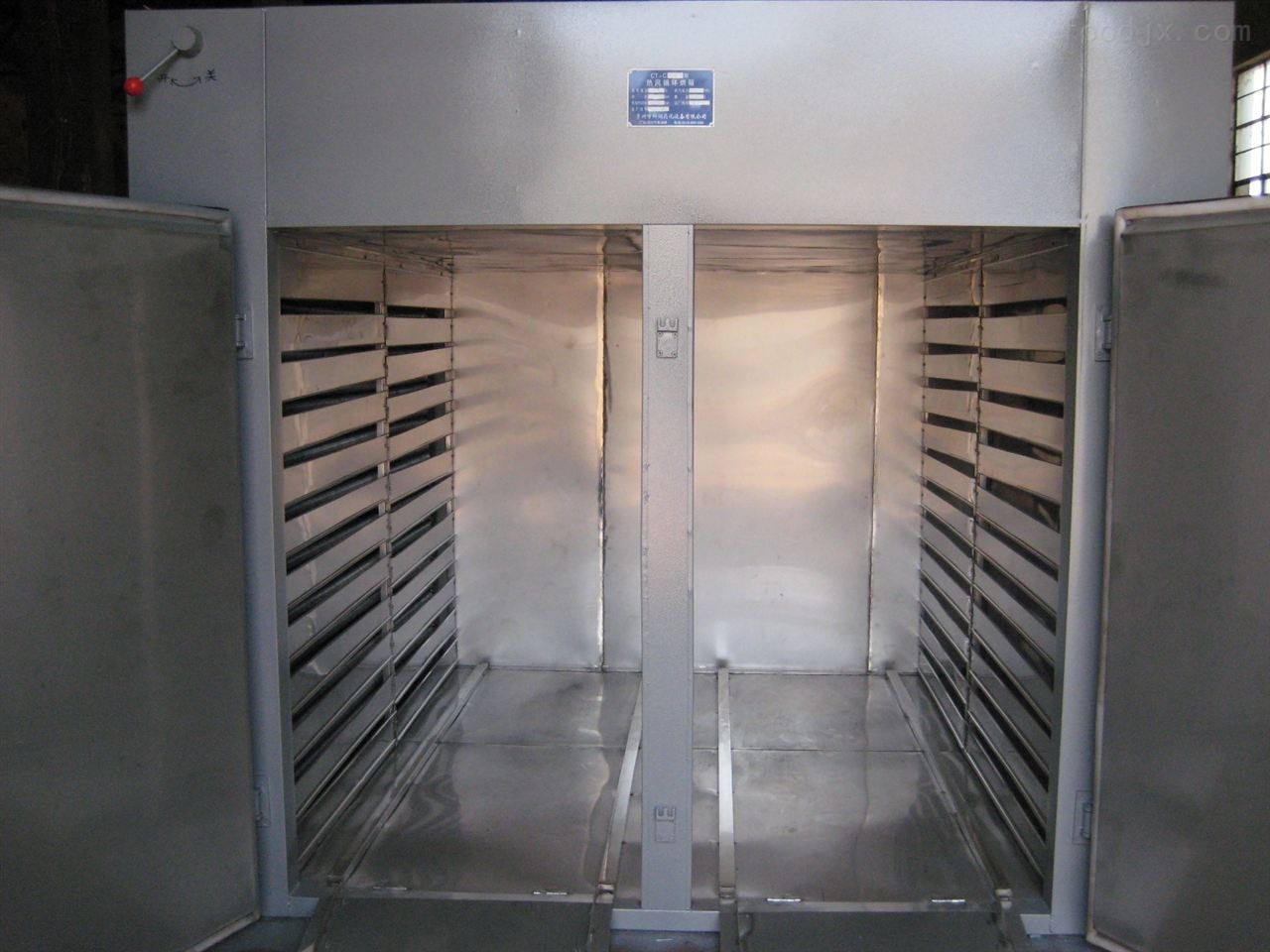

Oven Details
Company Profile
Certification
FAQ
1. Can I use Dryer Oven to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2. Can I use my own raw materials for test?
Yes, of course. We can do tests and send videos and test reports for your reference.
3. Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4. How to transport equipment?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
5. What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
6. what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
