Features:
◆ Raw material is heated evenly and heat exchange is fully and dry capacity is high. Compared with ordinary dryer, the energy can be saved about 30%.

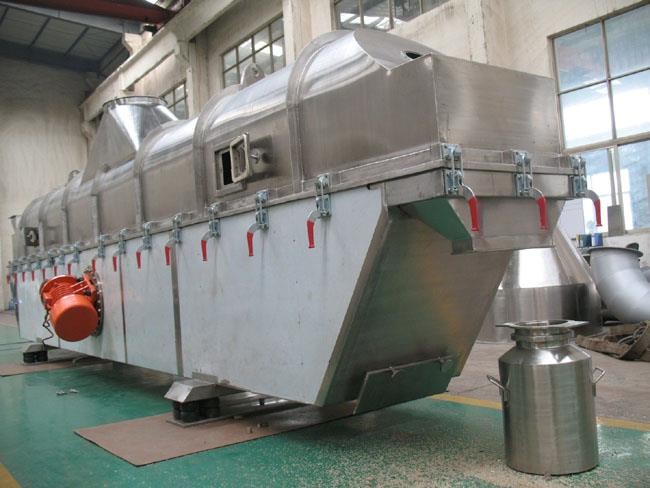

◆ The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long life.
◆Good adjustability and wide application area. The thickness of the material layer, the moving speed in the machine and the change of the full amplitude can be adjusted steplessly.
◆ The fluidized state is stable and no dead angle and phenomenon of being broken out.
◆ Using a fully enclosed structure. Effectively prevent cross-infection between materials and air, and the working environment is clean.
◆Small damage to the surface of the material. It can be used for drying fragile materials, and the work effect will not be affected even when the material particles are irregular.

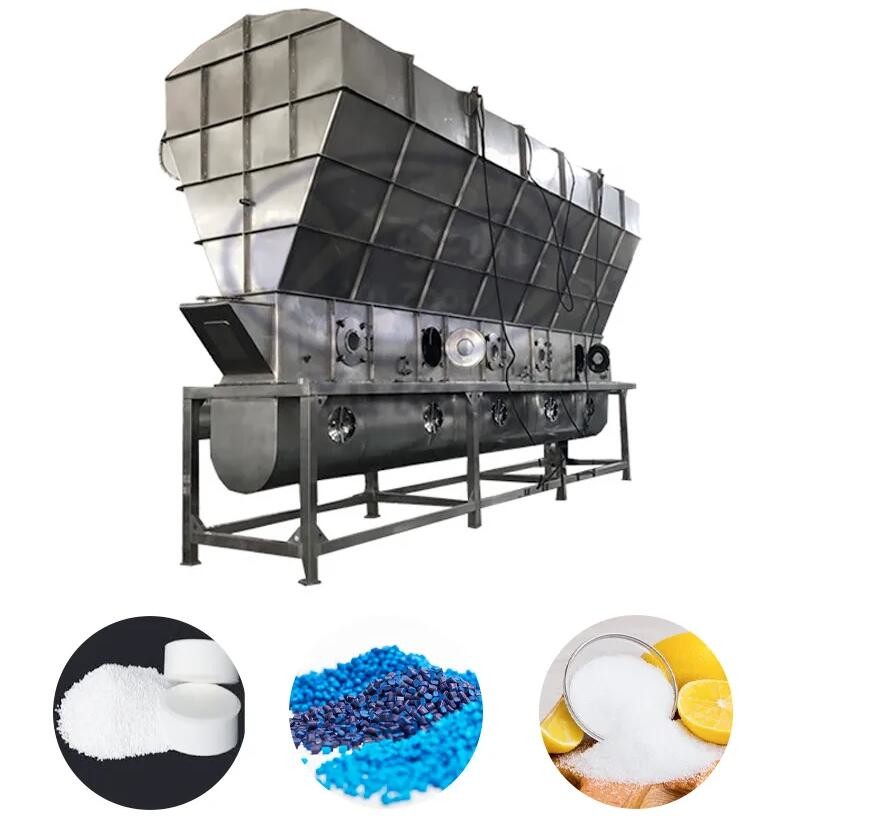

Adapt to materials
Suitable for drying and cooling of powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, minerals and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, dill, silk, soybean meal, distiller's grains, seeds, slag, sugar, etc.

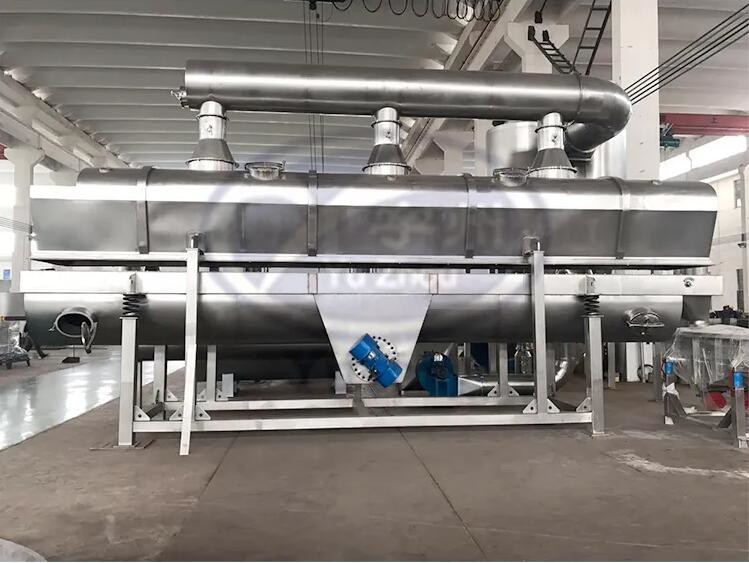

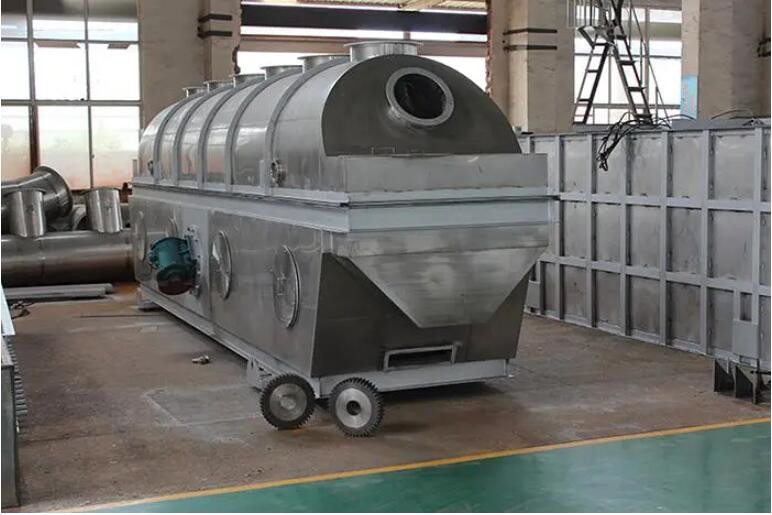

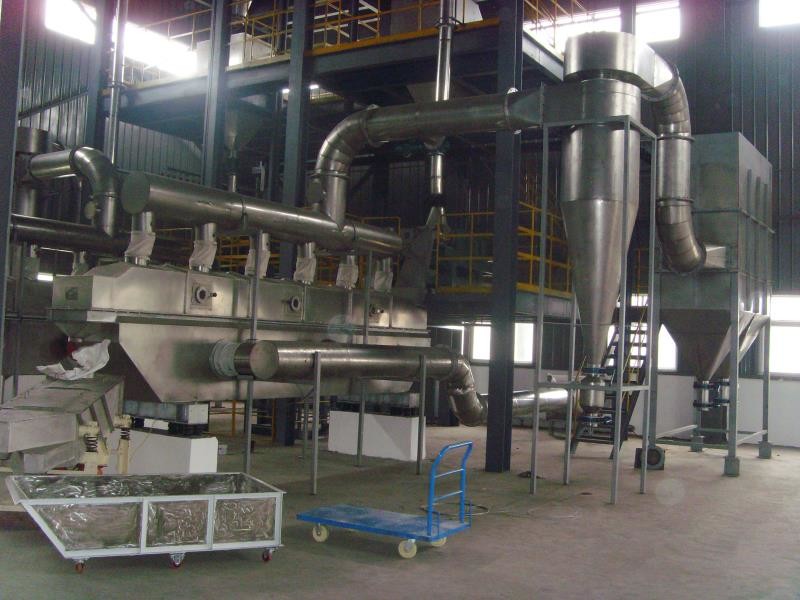

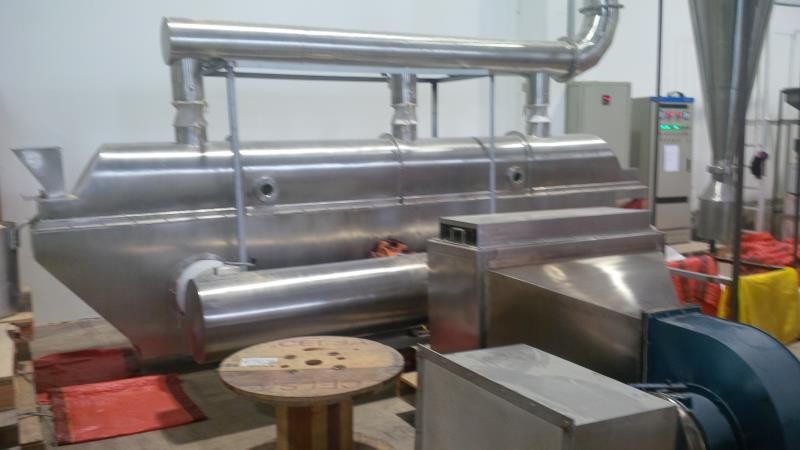

Product Details
Changzhou Melton Trading Co., Ltd.
Pre- sale services:
1. Design and manufacture machines for you as your special requirement, provide you withproject, process design and pruchase program
2. We can provide you with project design, process design, suitable purchase program foryour equipment. Also design and manufacture products based on your specific needs, totrain your technical personnel.
On-Sale services:
1. Accompany with you to look around our factory, explain the manufacture process of ourmachines and check the working performance of our machine.
2. We will accompany you to complete the equipment inspection, construction plan andassist in the development process in detail.
After Sale Services:
1. Training how to instal the machine, training how to use the machine.2. Engineers available to service machinery overseas.
Technical parameter
| Size Model | A | B | C | D | E | F | Weight(kg) |
| ZLG3×0.30 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| ZLG4.5×0.60 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1670 |
| ZLG6×0.60 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| ZLG6×0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2840 |
| ZLG6×0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| ZLG7.5×0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| ZLG7.5×0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| ZLG7.5×1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| Model | Area of fluidized bed(m²) | Temperature of inlet air (℃) | Temperature of outlet (℃) | Capacity to vapor moisture (kg) | Vibration motor | |
| Model | Power Kw | |||||
| 3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
| 4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 |
| 6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 |
| 6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 |
| 6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2 |
| 7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 |
| 7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 |
| 7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51-6 | 3.0×2 |
★The above evaporation capacity is the upper limit of evaporation capacity.
FAQ
1.Can I use this machine to extract some raw materials? Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used. 7.what is your after-sales service? We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
